Resistor Color Code Worksheet Pdf
This is written as 680R. 12a is determined as.
Resistor Color Code Worksheet Doc Worksheet Resistor Color Codes Name The Purpose Of This Worksheet Is To Help Review Your Understanding Of Resistor Course Hero
Resistor Color Code Band 1 Band 2 Band 322 ohm R22 Red Red Silver27 ohm R27 Red Purple Silver33 ohm R33 Orange Orange Silver39 ohm R39 Orange White Silver47 ohm R47 Yellow Purple Silver Notation Tolerance56 ohm R56 Green Blue Silver68 ohm R68 Blue Gray Silver82 ohm R82 Gray Red Silver 10 ohm 1R0 Brown Black Gold 11 ohm 1R1 Brown Brown Gold.
Resistor color code worksheet pdf. Notes 6 The normal way to teach students the resistor color code is to show them the code first then show them some resistors. The color code is reproduced for convenience. Resistor Color Code Many electrical components use some form of color coding scheme to indicate their value.
Which means tolerance is 5. Resistor color codes worksheet Johnson Evinrude OMC outboard motor outboard motor repair 99 15 hp dateyear of manufacture water pump carburetor long shaft 15 hp conversion sailmaster This article covers many aspects of these series of OMC motors but over the years it has grown to the point that I have had to split it. Showing top 8 worksheets in the category - Colour Code Of Resistor.
Some of the worksheets for this concept are Resistor color code guide Eet 150 introduction to eet Please be no scribbling or scratching i suggest Resistor color code chart Design and technology The resistor colour code Dc electrical circuits workbook Dc circuit calculations. In this exercise you will practice reading and converting resistor color codes to their numeric equivalent and vice-versa. So the value of the resistor given in Fig.
Thus a clever way was devised to tell the value of a resistor. I never remember them so I always have a handy table of the resistor color codes nearby. Do you remember what the colors on your resistor means.
St1 Digit 2nd Digit Multiplier Code Resistance Color Brown Black Black 2 Value 1 0 0 00 10000 10 kΩ The above resistance has a tolerance color of gold. Colors used to code a 470k ohm resistor and resistor value are some. This calculator will help you identify the value tolerance and temperature coefficient of a color coded resistor by simply selecting the bands colors.
Because carbon resistors are physically small they are color-coded to identify their resistance value in ohms. Some of the worksheets displayed are Resistor color code guide Please be no scribbling or scratching i suggest Resistor color code chart Design and technology Eet 150 introduction to eet The resistor colour code Insert the correct missing word into the spaces of the Figure 2 wire color code charts z. Industrial Electricity Name _____ Worksheet 2.
It should be noted that there is a 5-band color code for non-precision resistors as well with the first four bands serving the same purpose as in a 4-band code the extra band indicating resistor reliability. I often challenge students to invent their own limericks for remembering this color code and screen the inappropriate creations from general class discussion. The resistors are all color coded.
Multiplier color band being red 2 means the number of zeros added will be 2. Probably the most common electrical color code is the one that indicates the nominal value of resistors. In this exercise you will practice.
Blue Grey Brown Gold. Color band1 band2 band3 black 0 0 none brown 1. Meter 1 Violet green Broun 750 Ω 750 Ω 7125 Ω min gold 7875 Ω max 2 Brown green red 1500 Ω 1532 Ω 1425 Ω min gold 1575 Ω max 3 Orange orange 33000 Ω 336 Ω 200k 1575 Ω min orange gold 1725 Ω max 4 Red violet yellow 270000 Ω 271 Ω.
Blue 6 Band 2. Resistor values worksheet Resistors are rather small and come in many different values of resistance. Grey 8 Band 3.
This scheme was developed for military purposes and is seldom seen in civilian circuitry. Probably the most common electrical color code is the one that indicates the nominal value of resistors. If you said no then were the same.
Colour Code Of Resistor. Displaying top 8 worksheets found for - Resister Colour Code. Meter id Resistors color Value by Value by Digital tolerance calculation AVO.
Resistor Color Code Many electrical components use some form of color coding scheme to indicate their value. Determine the value and tolerance of the 8 resistors by Digital AVO. It will also calculate the minimum and maximum values based on the tolerance ratio.
Color-coding is standardized by the Electronic Industries. If the manufacturer were to print the value of the resistor on the side of the resistor it would be too small to read. Resistor Color Code Chart Resistors are devices that limit current flow and provide a voltage drop in electrical circuits.
Resistor Color Code Worksheet for EEST 103 Resistor Color Coded Value Ω Tolerance Range Min- Max Value of Resistor Brown-Black-Blue- Gold 10m Ohms 5 95m ohms to 105m ohms Brown-Black-Black- Gold 10 ohms 5 95 ohms to 105 ohms Red-Red-Black-Silver 22 ohms 10 198 ohms to 242 ohms Yellow-Violet-Black 47 ohms 20 376 ohms to 564 ohms Brown. The use of color bands on the body of a resistor is the most common system for indicating the value of a resistor. Brown 1 add one zero to the first two numbers Therefore the value of this resistor is 680 Ohms.
The quizworksheet combo is a tool you can access to review your understanding of finding the color code of a 1k ohm resistor. This physics video tutorial explains how to use the resistor color code chart to determine the value of the resistance of a resistor in an electric circuit. Resistor Color Codes PDF Download Resistor Color Codes PDF Download July 7 2016 By Øyvind Nydal Dahl 2 Comments.
Worksheet 2 Resistor Color Code Pdf Industrial Electricity Name Worksheet 2 Resistor Color Code Many Electrical Components Use Some Form Of Color Course Hero
Worksheet 2 Resistor Color Code Pdf Industrial Electricity Name Worksheet 2 Resistor Color Code Many Electrical Components Use Some Form Of Color Course Hero

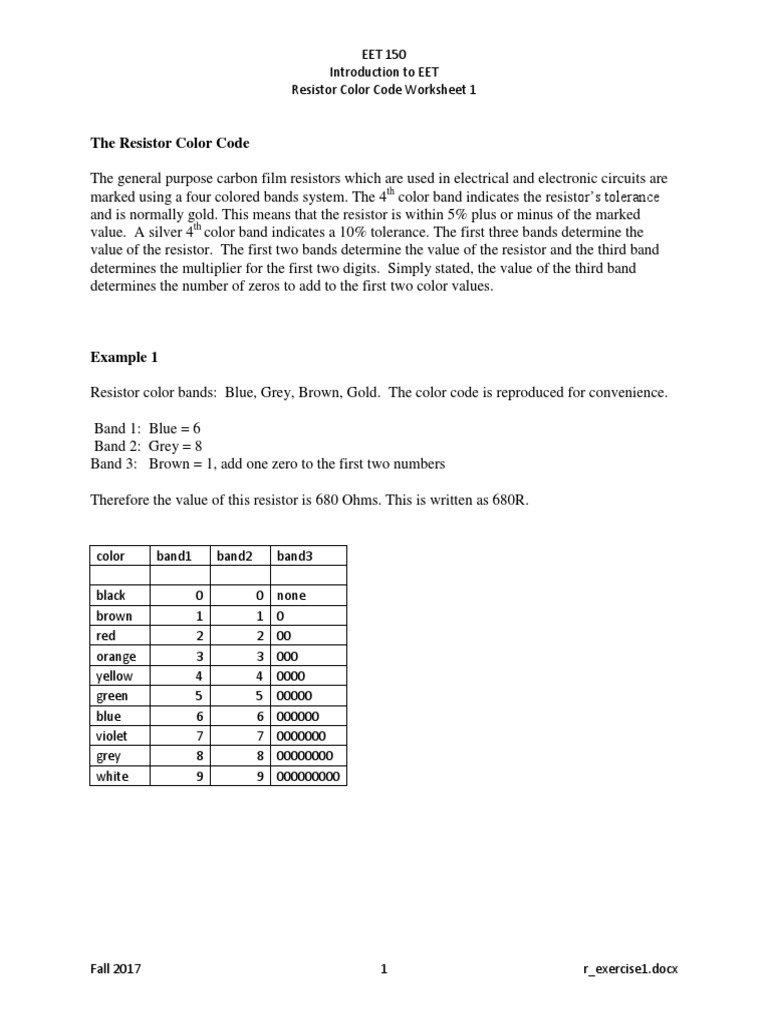

Resistor Excise Eet 150 Introduction To Eet Resistor Color Code Worksheet 1 The Resistor Color Code The General Purpose Carbon Film Resistors Course Hero
